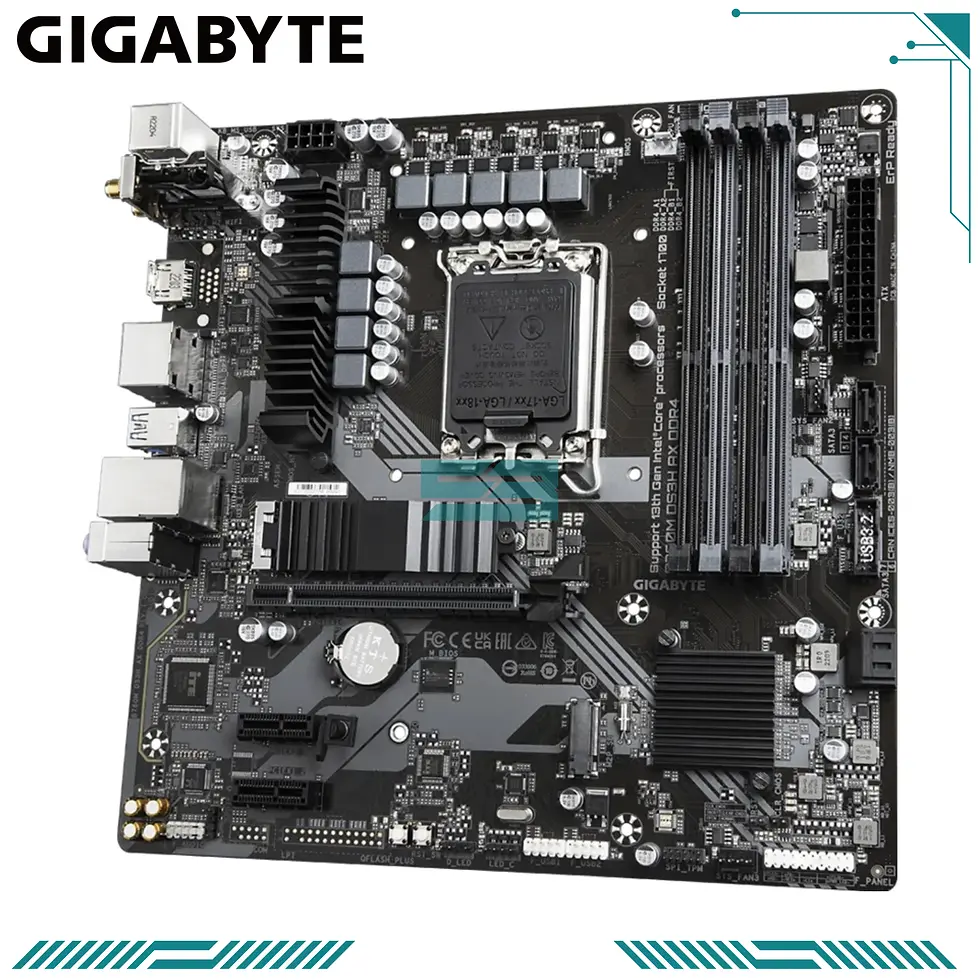

GIGABYTE B760M DS3H AX DDR4 WiFi 6 LGA1700 Micro-ATX Motherboard
Connected Efficiency, Affordable Power. — A robust and wireless-ready DDR4 platform featuring tri-band Wi-Fi 6E and high-speed 2.5Gb networking for the modern workspace.

The GIGABYTE B760M DS3H AX DDR4 (Rev 1.0) is a highly versatile Micro-ATX motherboard designed for Intel® 14th, 13th, and 12th Gen processors. This specific revision (1.0) is notable for its integrated AMD Wi-Fi 6E RZ608 (MT7921K) module, which grants access to the low-interference 6GHz band. By sticking with DDR4 memory, it remains a cost-effective choice for builders who want premium connectivity—like 2.5GbE LAN and USB-C®—without the higher price tag of DDR5 hardware.

GIGABYTE B760M DS3H AX DDR4 WiFi 6 LGA1700 Micro-ATX Motherboard

SKU: GIG-B760M-DS3H-AX-DDR4
₱7,450.00Price
Quantity
Only 7 left in stock

    • Socket: Intel® LGA1700

    • Chipset: Intel® B760

    • Form Factor: Micro-ATX (24.4cm x 24.4cm)

    • Memory: 4 x DDR4, Max 128GB (Up to 5333 MHz OC)

    • Expansion: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1

    • Storage: 2 x PCIe 4.0 M.2, 4 x SATA 6Gb/s

    • Networking: Wi-Fi 6E (MT7921K) + BT 5.2 + 2.5GbE LAN

Description

The GIGABYTE B760M DS3H AX DDR4 is a "sweet spot" motherboard for users who need a compact build with full wireless capabilities. Because this is the Rev 1.0 (MT7921K) model, it uses a proven Wi-Fi 6E solution that is excellent for high-bandwidth tasks like 4K streaming or wireless VR. The board's Ultra Durable™ design includes anti-sulfur resistors and solid-pin power connectors to ensure long-term hardware health even in demanding conditions.


One of its strongest selling points is the internal layout. Despite being an mATX board, it manages to fit four RAM slots and two M.2 slots, providing ample room for system expansion. The Rear USB-C® 10Gb/s port ensures compatibility with the newest external drives and peripherals. Additionally, with Q-Flash Plus, you can update the BIOS via a USB stick without needing to install the CPU or RAM, making it incredibly easy to prep the board for the latest Intel 14th Gen "Refresh" processors.


Key Features

  • AMD Wi-Fi 6E (MT7921K): Integrated tri-band wireless support (2.4/5/6 GHz) and Bluetooth 5.2, providing faster speeds and more stable connections in crowded network environments.

  • Hybrid 6+2+1 Phase Digital VRM: Delivers clean and efficient power to the CPU, ensuring stable performance for mid-to-high-end Intel Core processors.

  • DDR4 Memory Support: 4 DIMM slots supporting up to 128GB of RAM with speeds up to 5333 MHz (OC), allowing you to use affordable, widely available memory.

  • Dual PCIe 4.0 x4 M.2 Slots: Provides two high-speed storage connectors with an included M.2 Thermal Guard on the primary slot to prevent SSD throttling.

  • 2.5GbE Gaming LAN: Realtek 2.5 Gigabit Ethernet offers up to 2.5x the speed of standard networking for superior streaming and lag-free gaming.

  • Quad-Display Support: Features HDMI 2.1, two DisplayPorts, and a D-Sub (VGA), a rare combination that allows for a four-monitor setup using only integrated graphics.

  • PCIe EZ-Latch: A reinforced PCIe 4.0 x16 slot with a quick-release design, making it simple to swap out bulky graphics cards.



Specifications
