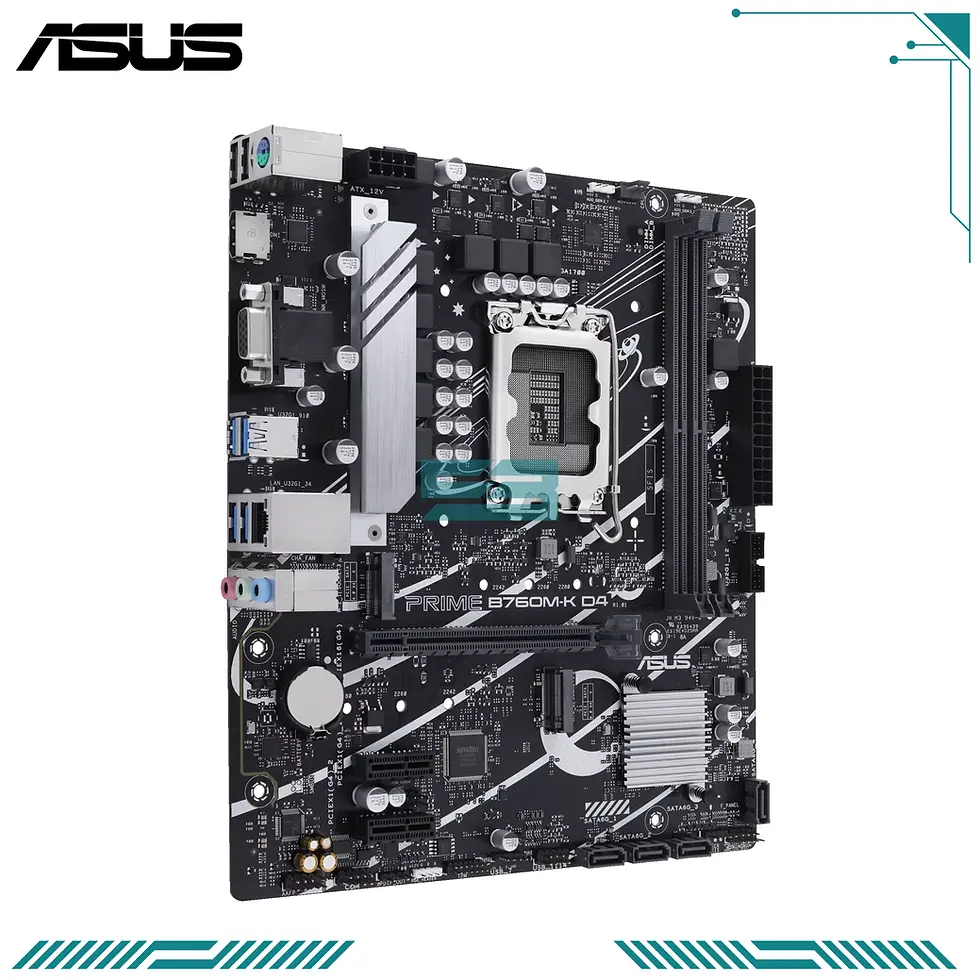

ASUS PRIME B760M-K D4 LGA1700 Micro-ATX Motherboard
Essential Efficiency, Modern Speed. — A streamlined and cost-effective B760 platform that prioritizes high-speed storage and 2.5Gb networking for a fast, responsive computing experience.

The ASUS PRIME B760M-K D4 is a leaner, more budget-friendly version of the Prime B760 series. Designed for Intel® 14th, 13th, and 12th Gen processors, it retains the essential "speed" features like dual PCIe 4.0 M.2 slots and 2.5Gb Ethernet but simplifies the layout with two DDR4 slots and a more compact footprint. It is an ideal foundation for home office PCs or entry-to-mid-range gaming builds where performance-per-dollar is the top priority

ASUS PRIME B760M-K D4 LGA1700 Micro-ATX Motherboard

SKU: ASU-B760M-K-D4
₱5,995.00Price
Quantity
Only 1 left in stock

  • Quick Specs

    • Socket: Intel® LGA1700

    • Chipset: Intel® B760

    • Form Factor: Micro-ATX (24.4cm x 21.1cm) — More compact than the B760M-A.

    • Memory: 2 x DDR4, Max 64GB (Up to 5333 MHz OC)

    • Expansion: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1

    • Storage: 2 x PCIe 4.0 M.2, 4 x SATA 6Gb/s

    • Networking: Realtek 2.5GbE LAN (No built-in Wi-Fi)

Description

The ASUS PRIME B760M-K D4 is built for those who want the improved bandwidth of the B760 chipset without paying for features they don't need. Compared to the "A" model, this "K" variant is slightly narrower and limits the RAM to two slots, which is usually sufficient for gaming and general productivity (supporting up to 64GB). It also swaps the Wi-Fi module for a simpler wired-only setup, though it keeps the high-speed 2.5Gb Ethernet port.


One notable feature for DIY builders is the inclusion of Q-Latch, which allows for tool-free M.2 SSD installation—no more tiny screws to lose. It also features ASUS 5X Protection III, a suite of hardware safeguards including LANGuard and overvoltage protection to ensure long-term durability. While it is an entry-level B760, it still provides Digi+ VRM control for precise power delivery to the CPU, making it a stable choice for i3 and i5 processors.


Key Features

  • PCIe 4.0 Ready: Features a primary PCIe 4.0 x16 slot for modern GPUs and two PCIe 4.0 M.2 slots for storage speeds up to 64Gbps.

  • Realtek 2.5Gb Ethernet: Offers a significant networking upgrade over standard Gigabit, providing faster data transfers and smoother online gaming.

  • Efficient Cooling: Built with a dedicated VRM heatsink and PCH heatsink, managed by Fan Xpert for intelligent system-wide cooling.

  • SafeSlot Core: A reinforced PCIe slot design that provides stronger retention and shearing resistance for graphics cards.

  • Q-LED Core: Onboard LEDs that produce light patterns by the power LED during the Power-On Self-Test (POST) to help users troubleshoot hardware issues.

  • Aura Sync RGB: Includes onboard Addressable Gen 2 headers and an Aura RGB header for easy synchronization of LED strips and compatible peripherals.

  • 4K @ 60Hz Support: The HDMI 2.1 port supports high-resolution displays, complemented by a legacy VGA port for dual-monitor versatility.



All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.


Flexible Air- and Liquid-Cooling Controls

ASUS Fan Xpert software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.


Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
